Classis RM 30 B - Vertical Microphone Array (Black)

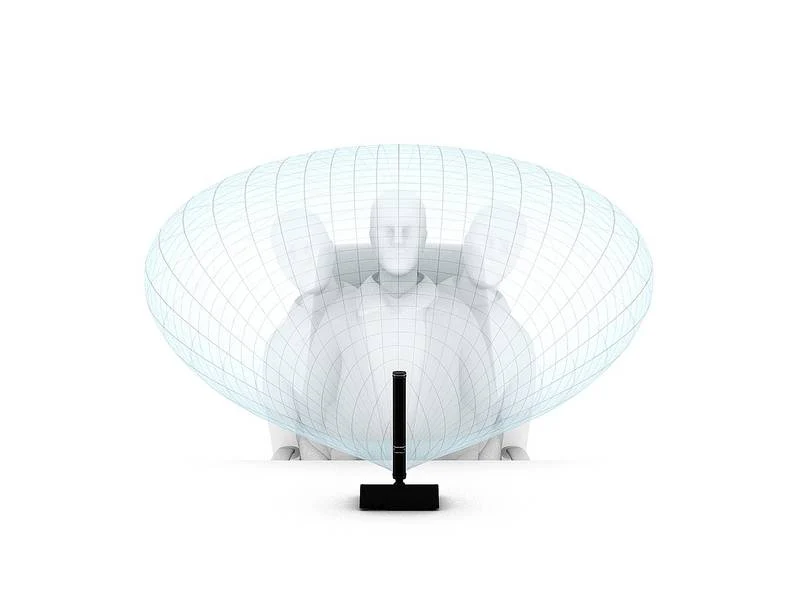

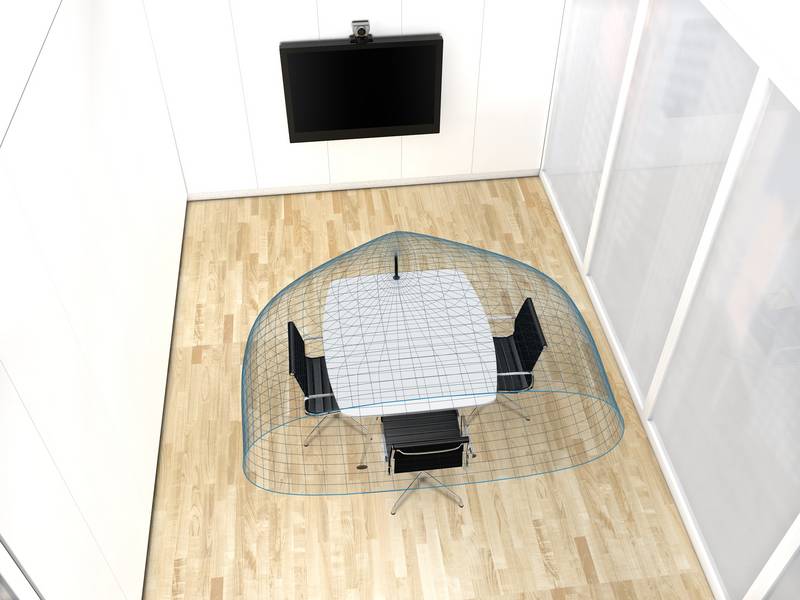

The Classis RM 30 is a desktop microphone for round table discussions, podiums, tele/video conferencing and lecterns. The vertical microphone array results in a horizontal corridor characteristic (horizontal cardioid, vertical lobe). This allows the speaker or conference participant maximum freedom of movement at a consistent intelligibility of speech. It is possible for two people to share one microphone. The vertical lobe polar pattern also optimises the gain before feedback in ceiling installations.

Features:

Revoluto Technology
Reclinable microphone
Gain before feedback
RFI proof
3-pin XLR connector
Filter

Specifications:

Microphone: . . . . . . . . . . Revoluto microphone array, patented
Transducer type: . . . . . . . . . . Electret condenser
Operating principle: . . . . . . . . . . Pressure gradient
Polar pattern: . . . . . . . . . . Corridor
Horizontal: . . . . . . . . . . Cardioid
Vertical: . . . . . . . . . . Lobar
Optimal distance to the speaker: . . . . . . . . 40 - 80 cm [15.75" - 31.5"]
Frequency response:. . . . . . . . . . 90 - 20.000 Hz
Sensitivity: . . . . . . . . . . . . . . . . .28.5 mV/Pa = -30.9dBV ±2dB
Nominal impedance: . . . . . . . . .  < 200 ohm
Load impedance: . . . . . . . . .1 k ohm
Signal-to-noise ratio/noise votage: . . . . . . . . .67.2 dB [A] / 12.5 µV [A]
Max. SPL: . . . . . . . . . .107 dB [SPL @ 1% THD]
Equivalent SPL: . . . . . . . . . . . . 26.8 dB [A]
Connector: . . . . . . . . . . . . . . .bal. with 3-pin male XLR connector
Supply voltage / supply current:
Phantom power
P48 (+48 VDC ¬±4 VDC, 6.8 k ohm±20%, < 4.5 mA)
P24 (+24 VDC ¬±4 VDC, 1.2 k ohm±20%, < 4.5 mA)
P12 (+12 VDC ¬±1 VDC, 680 ohm ±20%, < 4.5 mA)
Temperature range: -10C bis +40C [14F to 104F]
